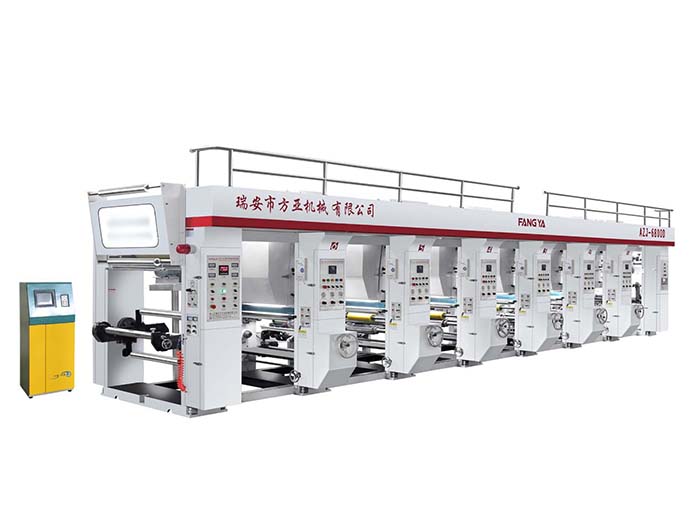

This kind of machinery is suitable for multi-color gravure printing of various

roll materials,plastics films and paper sheets.No shaft-mounted version,pneumatic scraper,external heating,heat drying cycle,air-cooled cooling unit,centralized waste discharge,double-work station for unwinding and rewinding,main motor frequency speed regulating device that it ensures stable tension,accuracy register,high efficiency,reasonable design, convenient and reliable operation are available.

    本機適用各種塑料薄膜、紙張等卷筒材料的凹版多色印刷。無軸裝版、氣動刮刀、外置加熱、循環熱干燥、風冷冷卻裝置、集中排廢、收放料雙工位、主機變頻調速、張力穩定、套印準確、工作效率高、設計合理、使用方便可靠。

Feature:

1.Unwinding dual air shaft,discharge automatic tension.

2.Rewinding dual air shaft,torque motor rewinding.

3.With shaft hand cap type plate,oil-immersed sealing highprecision gear

box transmission.

4.Dual axle three party a adjustable super-heavy pneumatic scarper,string

of momentum +6mm.

5.Float roll type double cylinder embossing.

6.Ink to be automatic cycle.

7.Drying equipment is circular hot air chamber.

8.Air cooling device.

9.Concentrated exhaust device.

10.Computer register system can be added.

11.Still image system can be added.

12.Obverse and inverse double-side printing device can be added.

13.The printing group number can be fixed according to clients'

requirements.

14.The rewinding and unwinding diameter size and obverse and inverse.

    Note:The extra options to match according to the clients'demand:Three-

motor,five-motor or seven-motor tension synchronous control system,high

speed automatic material cutting and roll changing without stopping the

machine can be added,obverse and inverse double-side computerized

register mechanism can be added and can increase drying heat source

including electricity,steam,heat transfer oil,natural gas,etc.

    注:可按客戶需要改配:三電機、五電機或七電機張力同步控制系統,可增配高速不停機自動裁接換卷,可增配正反印雙面電腦套色機構,干燥熱源:電、蒸汽、導熱油、天燃氣等。

主要特點：

1、放卷雙氣脹軸、放料自動張力。

2、收卷雙氣脹軸、收卷力矩電機。

3、無軸氣頂式裝版,油浸式密封高精度齒輪箱傳動。

4、雙軸三方位可調的重型氣動刀。串動量±6mm。

5、擺輥式雙氣缸壓印。

6、油墨自動循環。

7、干燥裝置為雙層式循環熱風箱。

8、設有風冷卻裝置。

9、集中排廢氣裝置。

10、可增配電腦套色系統。

11、可增配靜止畫面系統。

12、可增配正反雙面印刷裝置。

13、印刷組數根據客戶要求定做。

14、收放料直徑大小、收放卷裝置內外置可按客戶要求定做。
